Centerless Grinding Machine M100

Centerless Grinding Machine is used for precision Grinding & machining of cylindrical parts without the need for a center point for support. The Work Piece is held between between two grinding wheels. In Centerless Grinder Machines, grinding wheel do the machining whereas the regulating wheel only applies external pressure for proper grinding & provides linear feed to the workpiece. Beside Mechanical Centerless Grinding Machine Smith also manufactures Precision CNC Centerless Grinder, NC Centerless Grinding Machine & Hydraulic Centerless Grinder in India.

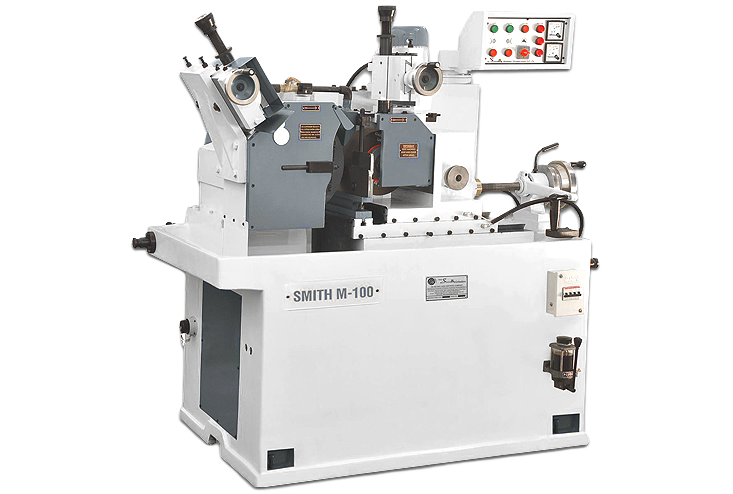

Centerless Griding Machine M100
Centerless Griding Machine M100

Centerless Grinding Machine Bed is made of high tensile strength cast iron, heavily ribbed for better vibration damping and shock absorption. Regulating wheel spindle is mounted on super precision antifriction bearings for higher rigidity with automatic separate lubrication system for grinding wheel head spindle.

TECHNICAL SPECIFICATIONS OF CENTERLESS GRINDING MACHINE
Model Smith M100
Grinding Capacity ( in mm ) 1 to 75
Grinding Wheel Size ( in mm ) 350 x 100x 127
Grinding Wheel Speed : R.P.M 1800/2000
Regulating Wheel Size ( in mm ) 225 x 100 x 76.2mm
Regulating Wheel Speed: 18x45x100 RPM
POWER
Grinding Wheel Head Motor 7.5 HP
(Optional) 10 HP
Regulating Wheel Head Motor 1HP
Coolant Pump Motor 0.10 HP
Power Supply V/ac 415/Hz 50 Phase 3
