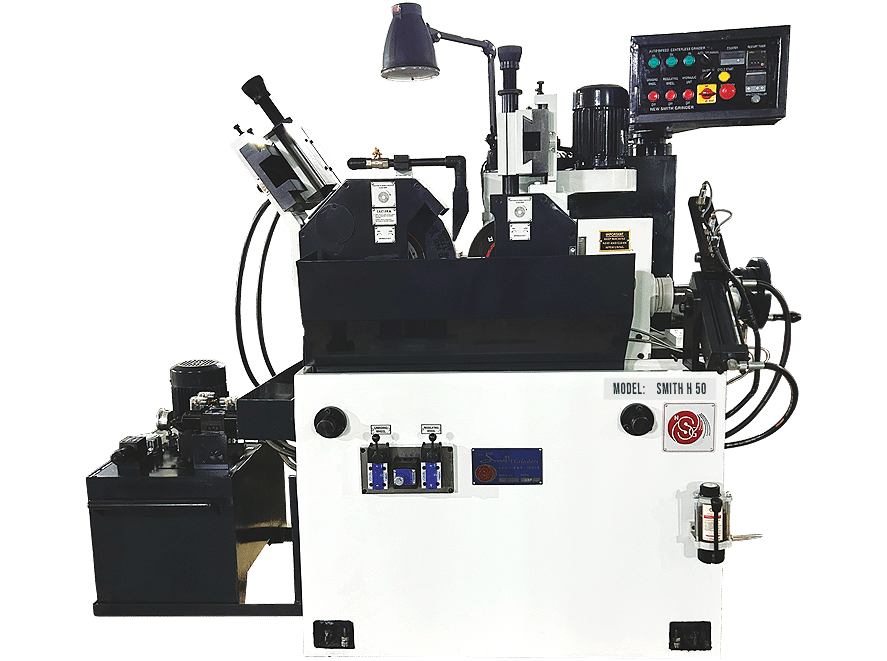

In Smith Hydraulic Centerless Grinders Bed is made of high tensile strength cast iron, heavily ribbed for better vibration damping and shock absorption. Regulating wheel spindle is mounted on super precision antifriction bearings for higher rigidity with automatic separate lubrication system for grinding wheel head spindle.
Smith Hydraulic Centerless Grinders are designed for high-efficiency grinding processes. With rapid hydraulic movements and quick setup features, our Centerless grinding machines enable faster cycle times and thus increases productivity. The hydraulic control panel optimize the grinding process for precise control of
the grinding process for maximum efficiency and through output.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| MODEL | SMITH H-50 | |
| Grinding Capacity | Minimum | 2MM |
| Maximum | 30MM | |
| Grinding Wheel Size | Dimension | 350MM |
| Width | 50MM | |
| Bore | 127MM | |
| Regulating Wheel Size | Dimension | 230MM |
| Width | 50MM | |
| Bore | 76.2MM | |
| Grinding Wheel Speed | RPM | 1800/2000 |
| Regulating Wheel Speed | RPM | 0-200 |
| Swivel of Regulating Wheel Slide Vertically | Degree | -1°~+5° |
| Swivel of Grinding and Regulating Dressing Slides | Degree | +5° |
| Grinding Wheel Motor | HP | 3 |
| Regulating Wheel Motor | HP | 1 |
| Hydraulic Unit Motor | HP | 1 |
| Coolant Pump | HP | 0.18 |
| Power Supply | 3 PHASE / 415 VOLTS / HZ 50 | |
