| TECHNICAL SPECIFICATIONS MODEL H150 | |||
|---|---|---|---|
| Grinding Capacity | Minimum | 2MM | |
| Maximum | 100MM | ||
| Grinding Wheel | Diameter – Width – Bore (IN MM) | ||
| Dimension | 400 – 150 – 203.2 | ||
| RPM | 1600 | ||
| Motor Power | 10HP/3 Phase | ||
| Regulating Wheel | Diameter – Width – Bore (IN MM) | ||
| Dimension | 250 – 150 – 110 | ||
| RPM | 10-150 | ||
| Motor Power | 1HP/3 Phase | ||
| Hydraulic unit Motor | 1 HP/3 Phase | ||
| Oil Circulating unit Motor | 0.5 HP/3 Phase | ||
| Magnetic Coolent Separator Motor | 0.25/3 Phase | ||
| Power Supply. | 3 Phase / 415 Volts / HZ 50 | ||

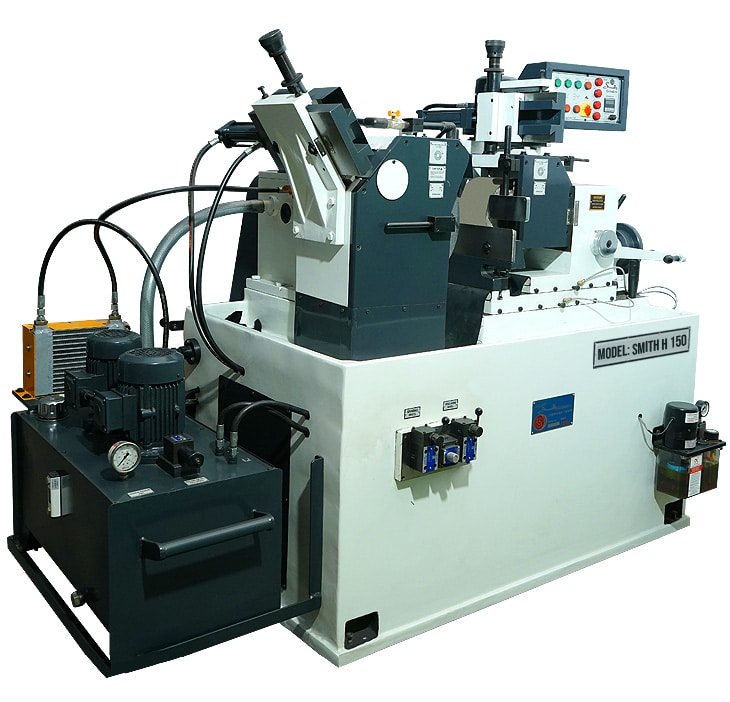

Hydraulic Centerless Grinding Machine H150
Our Products Range
Hydraulic Centerless Grinding Machine
In Smith Hydraulic Centerless grinding Machine Bed is made of high tensile strength cast iron, heavily ribbed for better vibration damping and shock absorption. Regulating wheel spindle is mounted on super precision antifriction bearings for higher rigidity with automatic separate lubrication system for grinding wheel head spindle.
