| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| MODEL | SMITH NC50 | |
| Grinding Capacity (Diameter) | Minimum | 2MM |
| Maximum | 25MM | |
| Grinding Wheel Size | Diameter | 350MM |
| Width | 50MM | |
| Bore | 127MM | |
| Regulating Wheel Size | Diameter | 230MM |
| Width | 50MM | |
| Bore | 76.2MM | |
| Grinding Wheel Motor | 3HP/1440 | |
| Regulating. Wheel Motor | 1HP/1440 | |
| Grinding Wheel Speed | 1800 RPM | |
| Regulating. Wheel Speed | 1-200 RPM | |
| Hydraulic Unit Motor | 1HP/1440 | |
| Coolant Pump | 0.18HP | |
| Power Supply | 3 Phase / 415 Volts / 50HZ | |
| Machine Weight | 1200 KGS (APX.) | |

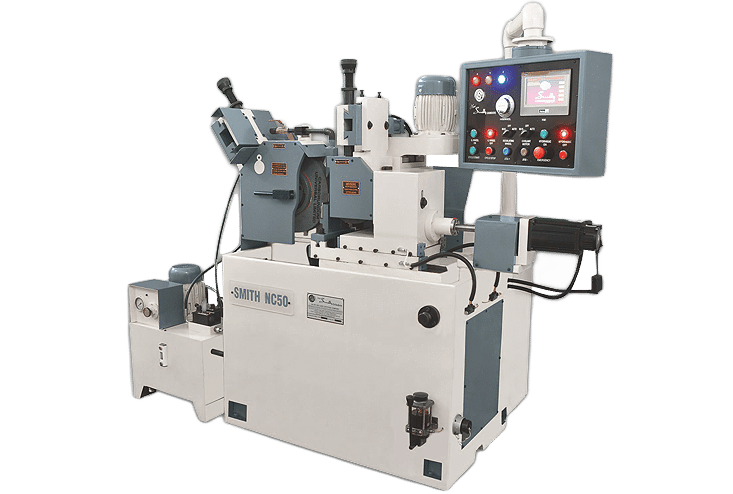

NC Centerless Grinder Machine NC50
Our Products Range
NC Centerless Grinder Machine by Smith is made of high tensile strength cast iron bed. Bed is heavily ribbed for better vibration damping and shock absorption. in Numerically Controlled Centerless Grinder Regulating wheel spindle is mounted on super precision anti friction bearings for higher rigidity with automatic separate lubrication system for grinding wheel head spindle.
